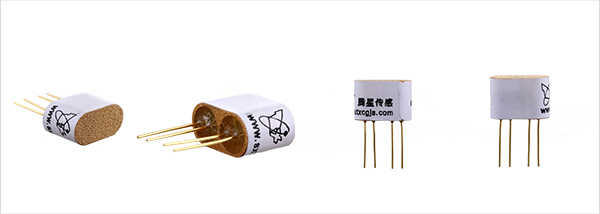

Catalytic Combustion Gas Sensor
Application:
Concentration detection of natural gas, liquefied gas, coal gas, alkane class and other combustible gasesProduct characteristics:
Good stabilityDescription
ZC25 / ZC25C catalytic combustion gas sensor work according to the principle of catalytic combustion effect, by the detection element and compensation element pair of a bridge, arm, when the combustible gas detection element resistance increases, bridge output voltage, change, the voltage variable with the gas concentration, compensation element for the reference and temperature and humidity compensation effect.
Specifications
Model | ZC25/ZC25C | |
Sensor type | Catalytic combustion-type gas sensor | |
Standard encapsulation | Metal packaging, metallurgical powder mesh | |
Working voltage (V) | 2.5±0.1 | |
working current (m A) | ZC25：150±10 | |
ZC25C：90±10 | ||
Sensitivity level (mV) | 1%methane | 15～35 |
1%propane | 20～50 | |
Linearity | ≤5% | |
Measuring Range (% LEL) | 0～100 | |
Response time (90%) | ≤10s | |
Recovery time (90%) | ≤30s | |
Working environment | -40～+70℃ less than 95%RH | |
Storage environment | -20～+70℃ less than 95%RH | |
dimensions (length, width, height, mm) | ZC25: 19×9.5×14 | |
ZC25C: 14×8×10 | ||
explosion-proof sign | ExdibⅠ | |
