SF6 Gas Sensor

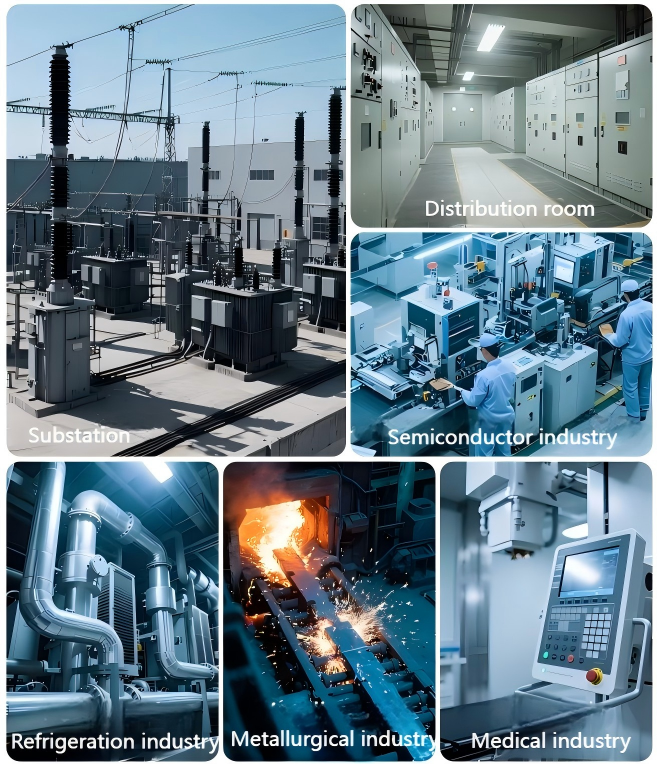

Application:
Industrial field instrumentsProduct characteristics:
High sensitivity, high resolution, and ultra-low power consumptionDescription
The TX720-Q2 infrared gas sensor is a general-purpose intelligent infrared gas sensor (hereinafter referred to as the sensor). It utilizes the non-dispersive infrared (NDIR) principle to detect sulfur hexafluoride gas in the air. It features excellent selectivity, oxygen independence, stable performance, and a long lifespan. It also features built-in temperature compensation. This compact, high-performance sensor combines proven infrared absorption gas detection technology with micromachining and sophisticated circuit design.
Specifications
| Product module | TX720-Q2 |
| Detection gas | Sulfur hexafluoride gas(SF6) |
| Operating voltage | (5.0±0.1)V DC |
| Average current | <100 mA(Peak current<180mA) @5VDC |
| Interface level | 3.0V(compatible 5V) |
| Measurement range | 0～3000 ppm |
| Output signal | UART(TTL level) |
| Warm-up time | 30 s |
| 5min(Measurement accuracy) | |
| Response time | T90<30 s |
| Operating temperature | 0～50 ℃ |
| Extended temperature range | -20～60℃ |
| Extended temperature drift | ±0.2%FS/℃ @Zero value |
| ±0.5%FS/℃ @50%FS | |
| Operating humidity | 0～95%RH(No condensation) |
| Dimensions | 38.5×63.6×19.3 mm |
| Weight | <100g |
| Lifespan | >10 years |
