Application:
Household smoke alarmsProduct characteristics:
High sensitivityDescription
The TX210-D13 smoke sensor utilizes an advanced chip-type thick-film semiconductor gas sensor. This sensor is highly sensitive to smoke, propane, and other gases. The module undergoes aging, commissioning, calibration, and testing to ensure excellent consistency and exceptional sensitivity.
Technical specifications
| Model No. | TX210-D13 |
| Detection Gas | Propane,smoke |
| Physical Interface | XH2.54-4P terminal socket |
| Output Data | A signal on-off output |
| Working voltage | 5.0±0.2V DC(No voltage reverse protection) |
| Output data type | TTL level(200Ω protected resistance inside) |
| Working current | ≤60mA |
| Warm up time | ≤3 min |
| Response Time | ≤20 s |
| Recovery Time | ≤60s |
| Operating Temperature | 0～50℃ |
| Operating Humidity | ≤95%RH |
| Storage Temperature | —20～60℃ |
| Storage Humidity | ≤60%RH |
| Size | 24.1×20.1×15.6mm (L×W×H) |
| Weight | ≤20g |
| Sensitivity Attenuator | ≤1%/year |
Application of schematic diagram
Application

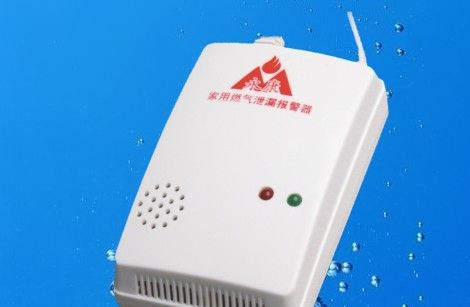

Widely used in household smoke alarms, industrial smoke alarms and portable smoke detection instruments
Production workshop
Certification
TenSensor, China's first listed gas sensor company,Tensensor can provide more than 100 varieties of six series including：
semiconductor gas sensor
electrochemical gas sensor
infrared gas sensor
dust sensor
pyroelectric sensor
thermopile sensor, etc.
which can be used for more than 200 kinds of gas and infrared, dust and other indicators detection, widely used in the field of security for detecting gas leakage, noxious gas leakage, smog and fire, the field of family, office and factory for detecting HCHO, VOC, CO2, PM2.5 and so on.
Moreover, the solutions for security, household electrical appliances, consumer electronics, smart home, instruments and meters are available.
For more information about TX210-D13 module, please contact account manager.
