TE03 electrochemical module

Products

Module

TE03 electrochemical module

Get Price

Datasheet

Application:

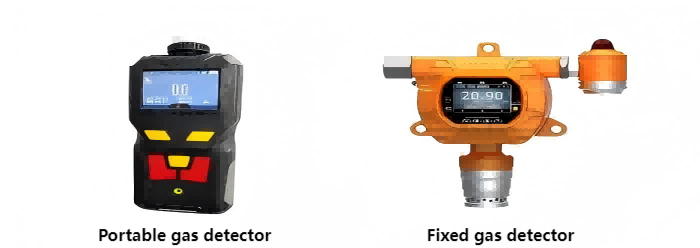

Portable and fixed gas detectors
Various gas detection occasions and equipment

Product characteristics:

High sensitivity, high resolution
Small size, low power consumption
Provide UART and analog voltage signal output
High stability and strong anti-interference ability

Description

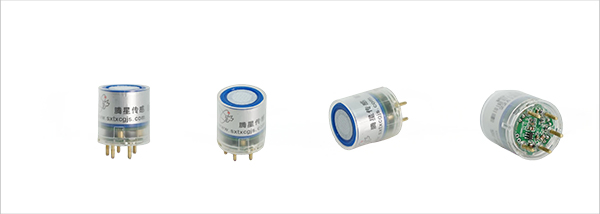

TE03 electrochemical module has two output modes: digital output and analog voltage output, which is convenient for users to use and debug, greatly shortening the user's design and development cycle. It perfectly combines electrochemical sensors and circuits to meet users' needs for different gas detection occasions.

Technical specifications

Product model	TE03
Detection gas	CO,O2,NH3,H2S,NO2,O3,SO2,CL2,HF,H2,PH3,HCL
Operating voltage	5±0.1V DC
Operating current	＜10mA
Output way	UART output(TTL LEVEL, 3V) Analog voltage
Life	2 years(in air)
Usage environment	Temperature: -20~50℃ Humidity:15%~95%RH (No condensation)
Storage Environment	Temperature: -20~50℃ Humidity:15%~95%RH (No condensation)
Size	Φ23.3mm31.2mm(diameterheight)
Weight	O2 module: ＜25g other module: ＜15g

Detection range and signal output

No.	Gas code	Gas type	Detection range	Resolution	Vo voltage output range	Response time(T90)
1	0x02	NH3	(0-100)ppm	1ppm	(0.6-3) V	≤150S
2	0x03	H2S	(0-100)ppm	1ppm	(0.6-3) V	≤30S
3	0x04	CO	(0-1000)ppm	1ppm	(0.6-3) V	≤30S
4	0x05	O2	(0-25) %VOL	0.1 %VOL	(1.5-0) V	≤15S
5	0x06	H2	(0-1000)ppm	1ppm	(0.6-3) V	≤120S
6	0x08	C2H4	(0-100)ppm	0.1ppm	(0.6-3) V	≤120S
7	0x17	HCHO	(0-50)ppm	0.1ppm	(0.6-3) V	≤120S
8	0x2A	O3	(0-10) ppm	0.1ppm	(2-0) V	≤120S
9	0x2B	SO2	(0-20) ppm	0.1ppm	(0.6-3) V	≤30S
10	0x2C	NO2	(0-20) ppm	0.1ppm	(2-0) V	≤30S
11	0x2E	HCL	(0-10) ppm	0.1ppm	(2-0) V	≤60S
12	0x2F	HCN	(0-100)ppm	0.1ppm	(0.6-3) V	≤120S
13	0x31	CL2	(0-20) ppm	0.1ppm	(2-0) V	≤60S
14	0x33	HF	(0-10)ppm	0.1ppm	(2-0) V	≤60S
15	0x34	ETO/VOC	(0-100)ppm	0.1ppm	(0.6-3) V	≤120S
16	0x45	PH3	(0-1000)ppm	0.1ppm	(0.6-3) V	≤30S
17	0x46	DG01(smell)	(0-50) ppm	0.01ppm	(0.6-3) V	≤120S
