Temp and humidity sensor

Humidity Sensor

Application:

Warehousing
Industry production
Process control
Environmental monitoring
Home appliances
Meteorology

Product characteristics:

Wide humidity detected range
Fast response
Small Humidity hysteresis error
Simple manufacture

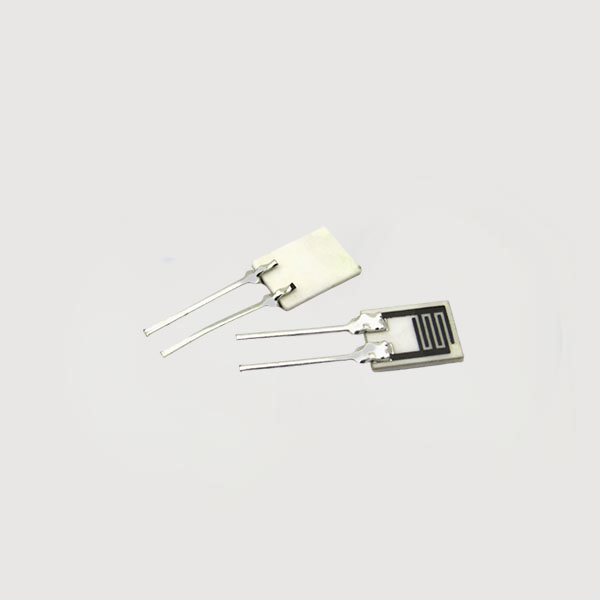

Description



    The humidity sensor is made of high polymer humidity sensitive material. In wet conditions, water molecules are adsorbed by polar group on the surface of martial. And as the humidity increases, the quantity of water molecules will be changed accordingly. The adsorbed water is gradually condensing and coming into be liquid, which is electrolyte solution with current channel quality.

  With the humidity increasing, macromolecule will swell, interior free volume will be bigger, carrier will be increased and the activated energy of macromolecule polyelectrolyte counterions will decrease, drift mobility will increase and impedance will decrease. And then when humidity decreases, water molecules are released from ion polymer and the resistor of material will increase. The environment humidity can be monitored through testing the impedance


Technical specifications

Working rangeTemperature:0~60°C, Humidity:10~90%RH
Storage rangeTemperature:-25~70°C, Humidity:≤60%RH
Detection range10~90%RH(0~60℃)
Rated voltage1.5V AC(MAX, sine wave)
Rated power0.2mW(MAX, sine wave )
Working frequency500Hz~2kHz
Nominal value &range31 (20~50) KΩ(60%RH, 25°C)
Temperature Character≤0.5%RH/°C
Hysteresis±2%RH
Response timeMoisture absorption:≤30s  Dehumidification:≤40s
Stability2%RH/year
Accuracy 3%RH



Basic circuit

    Implementation principle: Use the IO port of the microcontroller to output a 1KHz square wave to charge the capacitor through R1. When the IO port detects a low level inversion to a high level, the charging time is recorded and the current humidity value can be obtained through calculation.
