Products

Alcohol Sensor

TE30-C2H5OH Electrochemical alcohol module

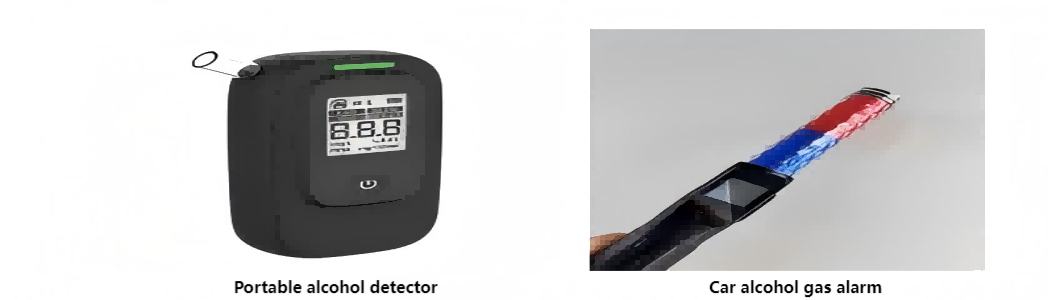

Application:

Alcohol tester
Vehicle-mounted tester

Product characteristics:

High sensitivity, high resolution, low power consumption, long service life
Provide UART, analog voltage signal and other output modes
High stability, excellent anti-interference ability

Product Description


    The TE30-C2H5OH electrochemical alcohol module is a universal, miniaturized module. It uses electrochemical principles to detect C2H5OH in the air, with good selectivity and stability. It has a built-in temperature sensor for temperature compensation; it also has digital output and analog voltage output for easy use. TE30-C2H5OH is a universal gas module designed and manufactured by closely combining mature electrochemical detection technology with sophisticated circuit design.

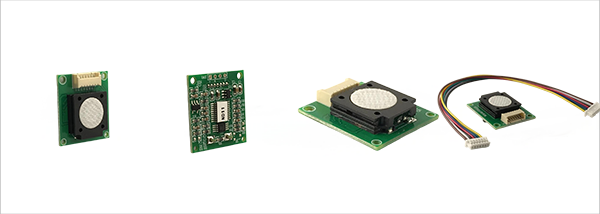

Product images


Technical indicators


Product modelTE30-C2H5OH
Detection gasAlcohol
Interfering gasCO
Output dataDAC (0.4~2V voltage signal corresponding to concentration: 0~full scale)
UART Output(3V Level)
Operating voltage3.7V~5.5V
Warm-up time≤3 minutes
Response time≤60S
Recovery time≤60S
Range0~5ppm
Resolution≤0.01ppm
Operating temperature -20~50℃
Operating humidity 15%~90% RH(No condensation)
Storage temperature 0~25℃
Using life2 years(in air)

Cross-interference characteristics


GasConcentration/ppmC2H5OH equivalent
C6H6100.1
C7H8100.46
C2H4O22000.52
H2S503
CO2000.64


Application



TenSensor, China's first listed gas sensor company,Tensensor can provide more than 100 varieties of six series including:

semiconductor gas sensor

electrochemical gas sensor

infrared gas sensor

dust sensor

pyroelectric sensor

thermopile sensor, etc.

which can be used for more than 200 kinds of gas and infrared, dust and other indicators detection, widely used in the field of security for  detecting gas leakage, noxious gas leakage, smog and fire, the field of family, office and factory for detecting HCHO, VOC, CO2, PM2.5 and so on.


Moreover, the solutions for security, household electrical appliances, consumer electronics, smart home, instruments and meters are available.


For more information about TE30-C2H5OH sensor, please contact  account manager.
