Catalytic Combustion Gas Sensor

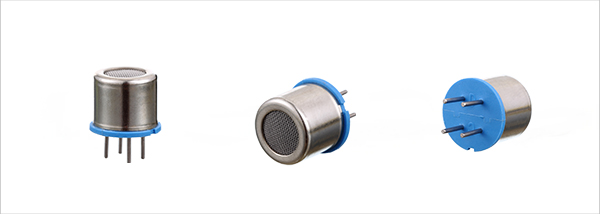

ZC25B-1 Catalytic Combustion Gas Sensor

Application:

It can be used for leakage alarm or concentration detection of natural gas and liquefied gas in the civil field.

Product characteristics:

The bridge output voltage is linear
Has a fast response speed, good repeatability and selectivity
The components work stably and reliably
Have excellent resistance to H2S

1. Description

The ZC25B-1 catalytic combustion gas sensor works according to the principle of catalytic combustion effect. It is composed of a detection element and a compensation element paired to form an arm of the bridge. When encountering combustible gas, the resistance of the detection element increases, and the output voltage of the bridge changes. The voltage change increases in direct proportion to the increase in gas concentration. The compensation element plays a role in reference and temperature and humidity compensation.

2. Technical specifications

Product modelZC25B-1
Product typeCatalytic Combustion Gas Sensor
Standard packagePlastic seat metal package
Working voltage(V)2.5±0.1
Working current(mA)150±10
Sensitivity(mV)

20% LEL Methane: 15-45

20% LEL Propane: 10-30

Linearity≤5%
Measuring range(%LEL)0-100
Response time(90%)≤10S
Recovery time(90%)≤30S
Usage environment -10℃~+55℃, Lower than 95%RH
Storage environment -25℃~+70℃ ,Lower than 95%RH
Life5 years


3. Appearance and dimension


4. Basic test circuit
