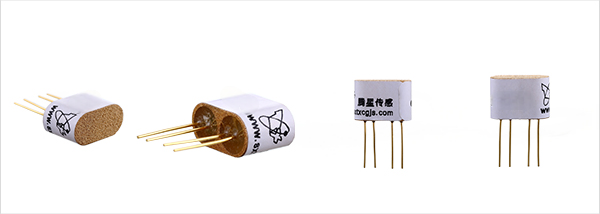

ZC25 /ZC25C Catalytic Combustion Gas Sensor

Products

Catalytic Combustion Gas Sensor

ZC25 /ZC25C Catalytic Combustion Gas Sensor

Get Price

Datasheet

Application:

Concentration detection of natural gas, liquefied gas, coal gas, alkane class and other combustible gases, combustible gas leakage alarm, combustible gas detector, gas concentration meter

Product characteristics:

Good stability
Quick response
The bridge output is linear
Good repeatability and selectivity
Excellent resistance to the interference of H2S gas and organosilicone

Description

ZC25 / ZC25C catalytic combustion gas sensor work according to the principle of catalytic combustion effect, by the detection element and compensation element pair of a bridge, arm, when the combustible gas detection element resistance increases, bridge output voltage, change, the voltage variable with the gas concentration, compensation element for the reference and temperature and humidity compensation effect

Technical specifications

Model		ZC25/ZC25C
Sensor type		Catalytic combustion-type gas sensor
Standard encapsulation		Metal packaging, metallurgical powder mesh
Working voltage (V)		2.5±0.1
working current (m A)		ZC25：150±10
		ZC25C：90±10
Sensitivity level (mV)	1%methane	15～35
	1%propane	20～50
Linearity		≤5%
Measuring Range (% LEL)		0～100
Response time (90%)		≤10s
Recovery time (90%)		≤30s
Working environment		-40～+70℃ less than 95%RH
Storage environment		-20～+70℃ less than 95%RH
dimensions (length, width, height, mm)		ZC25: 19×9.5×14
		ZC25C: 14×8×10
explosion-proof sign		ExdibⅠ

Basic test circuit

TenSensor, China's first listed gas sensor company,Tensensor can provide more than 100 varieties of six series including：

semiconductor gas sensor

electrochemical gas sensor

infrared gas sensor

dust sensor

pyroelectric sensor

thermopile sensor, etc.

which can be used for more than 200 kinds of gas and infrared, dust and other indicators detection, widely used in the field of security for detecting gas leakage, noxious gas leakage, smog and fire, the field of family, office and factory for detecting HCHO, VOC, CO2, PM2.5 and so on.

Moreover, the solutions for security, household electrical appliances, consumer electronics, smart home, instruments and meters are available.

For more information about ZC25/ZC25C sensor, please contact account manager.
