For civil HCHO monitoring
Application:

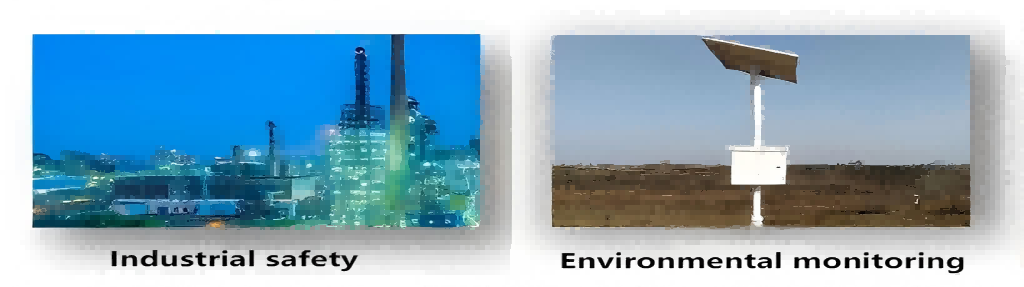

Widely used in civil, industrial and environmental protection occasion for formaldehyde detectionProduct characteristics:
Be stableDescription

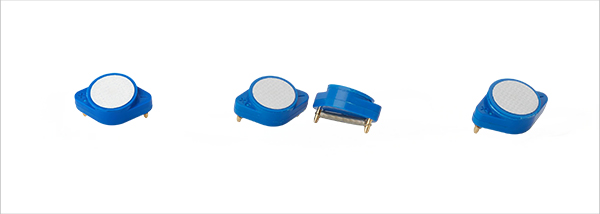

MQ-E2-CH2O-φ16 is the sensor of fuel battery type. By redox reaction, CH2O and O₂release charge and form the current. The value of current is proportional to the concentration of CH2O, and follow the Faraday’s Law. By testing the value of current, the concentration of CH2O is known.
Technical specifications
Media | CH2O |
Testing range | 0-10ppm(50ppm Max.) |
Sensitivity | (1.1±0.5)μA/ppm |
Resolution ratio | 0.02ppm |
Load resistor | 100Ω |
Repeatability | <2% output value |
Output linearity | linearity |
Zero drift(-20℃~+40℃) | ≤0.2ppm |
Temperature range | -20℃~+50℃ |
Humidity | 15%-90%RH |
Response time | ≤60s |
Pressure | standard air pressure±10% |
Basic circuit
Cross-interference characteristics
MQ-E2-CH2O-Ф16 sensor can respond to other gases except the target gas. The response characteristics of the sensor to several common interfering gases are listed in the table below for reference. The data in the table are typical responses of gases at given concentrations.
Gas | concentration/ppm | MQ-E2-CH2O-Ф16/ppm |
H2S | 100 | 3.7 |
C2H5OH | 2000 | 76.3 |
HCHO | 10 | 10 |
CL2 | 10 | 0.1 |
SO2 | 20 | 0.8 |
H2 | 500 | 5.5 |
NH3 | 50 | 0 |
CH3CL | 5 | 0.1 |
C2H4O | 10 | 0.5 |
C6H6 | 100 | 0.1 |
CH3COCH3 | 100 | 0.2 |
CH3OH | 200 | 23.9 |
TenSensor, China's first listed gas sensor company,Tensensor can provide more than 100 varieties of six series including:
semiconductor gas sensor
electrochemical gas sensor
infrared gas sensor
dust sensor
pyroelectric sensor
thermopile sensor, etc.
which can be used for more than 200 kinds of gas and infrared, dust and other indicators detection, widely used in the field of security for detecting gas leakage, noxious gas leakage, smog and fire, the field of family, office and factory for detecting HCHO, VOC, CO2, PM2.5 and so on.
Moreover, the solutions for security, household electrical appliances, consumer electronics, smart home, instruments and meters are available.
For more information about MQ-E2-CH2O-φ16 sensor, please contact account manager.
