CH4 Gas Sensor

MQ-K4 Semiconductor Natural Gas Sensor

for indoor combustible gas alarm

Application:

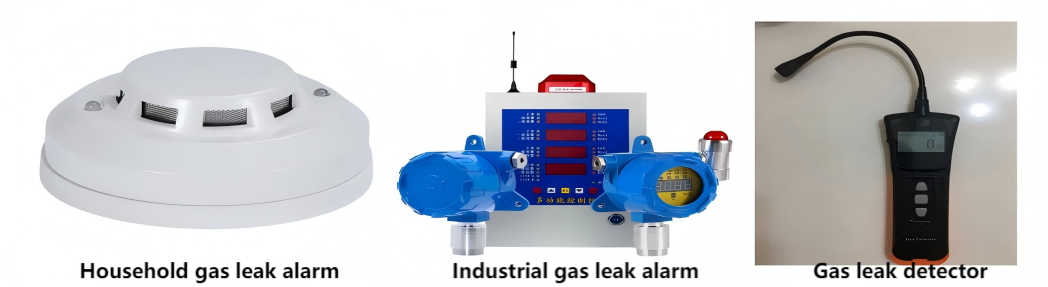

For alarm, monitor or detector of natural gas, liquefied petroleum gas, town gas and H2.

Product characteristics:

Long life
Be stable
Special structure for shaking-resistant
Be applicable to high or low temperature
Anti-jamming and anti-silicon poisoning

1. Performance

MQ-K4 gas sensors apply to the detecting instrument and monitor. Its sensitive to combustible gas such as natural gas, liquefied petroleum gas, town gas, hydrogen(H2) and so on.

2. Appearance and dimension



3. Specifications

Voltage in clean airV0=0.5~1.5V(depends on the loading)
Voltage in calibration gasV1>V0+1v(0.5% CH4)
Response time≤30s
Recovery time≤60s
Measuring pole voltageVc=5v±0.1
Heating pole voltageVh=5v±0.1
Heating pole currentIh<160mA
Load resistorRL=4.7K(adjustable)
Ambient temperature-10℃---+60℃
Storage temperature-50℃---+60℃
Relative humidity<90%
Air pressure650-800mmHg


4.Characteristic curve of the sensor



5.Precautions for use:


1. As shown in the figure, the sensor 2 and 5 are heating electrodes, and 1, 3 or 4, 6 are measuring electrodes. If the voltage is applied to 1, 3 or 4, 6, the measuring electrode will burn out. If it is applied to 2 and 4, no signal will be obtained.


2. Do not apply high voltage, which will cause sensor damage or performance changes.

3. Avoid long-term exposure to volatile silicon compound vapors, such as hair spray, silicone adhesive, and putty, which will cause the sensitive material to be covered and the product to fail.

4. The sensor is prohibited from contacting water or liquid, which will cause the sensitive material to fall off, resulting in sensor performance changes or failure.

5. Avoid using in highly corrosive environments, such as environments containing hydrochloric acid, nitric acid, strong alkaline substances or alkali metal salts, which will cause the sensitive material to deteriorate, the electrode to be corroded, and the sensor to be damaged.

6. Avoid using in extreme environments, such as long-term use in high-concentration gas, high humidity, high temperature, and high-pollution environments, which will cause changes in sensor performance.

7. Avoid strong vibration and impact, such as vibration during transportation and falling from a height, which may cause the sensor electrode to break or be damaged.

8. When welding, try to use manual welding, welding temperature ≤ 250 degrees, welding time less than 3 seconds, equipment welding, such as wave soldering, use flux with less chlorine content, speed 1-2 meters/minute, temperature 250±10 degrees, one-time welding, if conditions permit, apply film to the sensor mesh cap to avoid strong odor changing the sensor performance.

9. Product storage period and power-on stability time:

Storage time·Recommended power-on stabilization time when using
Within one month8h-12h
Within half a year12h-18h
one year or more18h-24h
