TX721-A2 Infrared Carbon Dioxide Gas Sensor

Application:

HVAC and indoor air quality monitoring
Industrial process and safety protection monitoring
Agriculture and animal husbandry production process monitoring

Product characteristics:

High sensitivity, high resolution, fast response time
Provide UART, analog voltage and other output modes
Temperature compensation, excellent linear output
long service life

Product Description



    TX721-A2 infrared carbon dioxide gas sensor is a general-purpose intelligent infrared gas sensor (hereinafter referred to as sensor). The sensor uses the non-dispersive infrared (NDIR) principle to detect CO2 in the air. The sensor has no oxygen dependence, stable performance and long life. Built-in temperature compensation. The sensor is a compact and high-performance sensor made by closely combining mature infrared absorption gas detection technology with micro-machining and sophisticated circuit design.

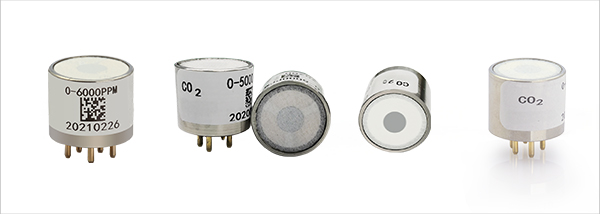

Product images



Technical indicators


ProjectTX721-A2
Detected gasCO2
Working voltage3.6~5 .0V DC
Average current< 85 mA
Maximum measurement range0~10% Vol
Interface level3.0V
Output signalUART 0.4~2 .0V
Preheating time3 min
Response time (T90)T90<30S
Temperature range-20℃~60 ℃
Humidity range0~95% RH
DimensionΦ20×22.4mm
Weight35 g
Life span> 5 years
Levels of protectionIP54
Parameters of the power supply terminals and communication terminalsUi=7.5VDC,Ii=265mA,Pi=0.5W, Ci=10 μF, Li=0mH


Common range and accuracy


Gas name
Molecular formulaDetection range(Analog Output)Range (digital output)AccuracyRemarks
carbon dioxideCO2
0-2000PPM

0~Full scale

400ppm~Full scale can be customized

±(50ppm+5% reading value)Temperature compensation
0-6000PPM
0-1% vol
0-3% vol
0-5% vol


Application



TenSensor, China's first listed gas sensor company,Tensensor can provide more than 100 varieties of six series including:

semiconductor gas sensor

electrochemical gas sensor

infrared gas sensor

dust sensor

pyroelectric sensor

thermopile sensor, etc.

which can be used for more than 200 kinds of gas and infrared, dust and other indicators detection, widely used in the field of security for  detecting gas leakage, noxious gas leakage, smog and fire, the field of family, office and factory for detecting HCHO, VOC, CO2, PM2.5 and so on.


Moreover, the solutions for security, household electrical appliances, consumer electronics, smart home, instruments and meters are available.


For more information about TX721-A2 sensor, please contact  account manager.
