CO Sensor
Application:
Widely suitable for petroleum and petrochemical, metallurgy, mining and other industrial sites and environmental protection areas of carbon monoxideProduct characteristics:
Low power consumptionDescription

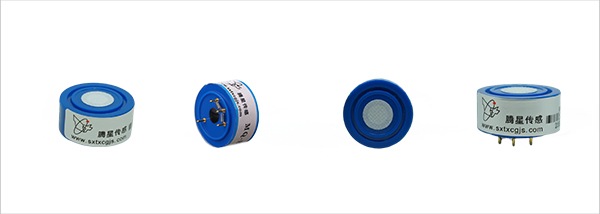

MQ-E4-CO is the sensor of fixed potential electrolysis type. By redox reaction, CO and O₂release charge and form the current. The value of current is proportional to the concentration of CO, and follow the Faraday’s Law. By testing the value of current, the concentration of CO is known.
Technical specifications
| Media | CO |
| Testing range | 0-1000ppm(2000ppm Max.) |
| Sensitivity | (0.07±0.015)μA/ppm |
| Resolution ratio | 0.5ppm |
| Bias voltage | 0mV |
| Load resistor | 10Ω |
| Repeatability | <2% output value |
| Stability(per month) | <5% |
| Output linearity | linearity |
| Zero drift(-20℃~+40℃) | ≤10ppm |
| Temperature range | -20℃~+50℃ |
| Humidity | 15%-90%RH |
| Response time | <20s |
| Pressure | standard air pressure±10% |
Basic circuit
Test Circuit
TenSensor, China's first listed gas sensor company,Tensensor can provide more than 100 varieties of six series including：
semiconductor gas sensor
electrochemical gas sensor
infrared gas sensor
dust sensor
pyroelectric sensor
thermopile sensor, etc.
which can be used for more than 200 kinds of gas and infrared, dust and other indicators detection, widely used in the field of security for detecting gas leakage, noxious gas leakage, smog and fire, the field of family, office and factory for detecting HCHO, VOC, CO2, PM2.5 and so on.
Moreover, the solutions for security, household electrical appliances, consumer electronics, smart home, instruments and meters are available.
For more information about MQ-E4-CO sensor, please contact account manager.
