Application:
Household smoke alarmsProduct characteristics:
High sensitivityDescription

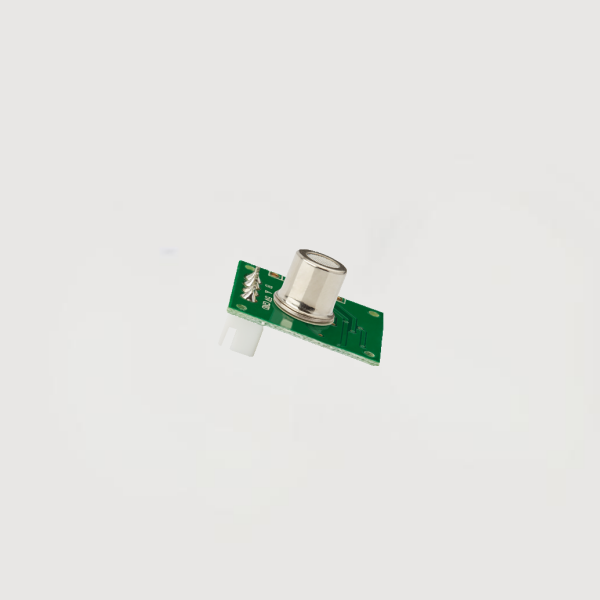

The TX210-D13 smoke sensor utilizes an advanced chip-type thick-film semiconductor gas sensor. This sensor is highly sensitive to smoke, propane, and other gases. The module undergoes aging, commissioning, calibration, and testing to ensure excellent consistency and exceptional sensitivity.
Specifications
| Model No. | TX210-D13 |
| Detection Gas | Propane,smoke |
| Physical Interface | XH2.54-4P terminal socket |
| Output Data | A signal on-off output |
| Working voltage | 5.0±0.2V DC(No voltage reverse protection) |
| Output data type | TTL level(200Ω protected resistance inside) |
| Working current | ≤60mA |
| Warm up time | ≤3 min |
| Response Time | ≤20 s |
| Recovery Time | ≤60s |
| Operating Temperature | 0～50℃ |
| Operating Humidity | ≤95%RH |
| Storage Temperature | —20～60℃ |
| Storage Humidity | ≤60%RH |
| Size | 24.1×20.1×15.6mm (L×W×H) |
| Weight | ≤20g |
| Sensitivity Attenuator | ≤1%/year |
