Application:
Development of complete household carbon monoxide alarmsProduct characteristics:
Provide serial port output and PWM output modesDescription

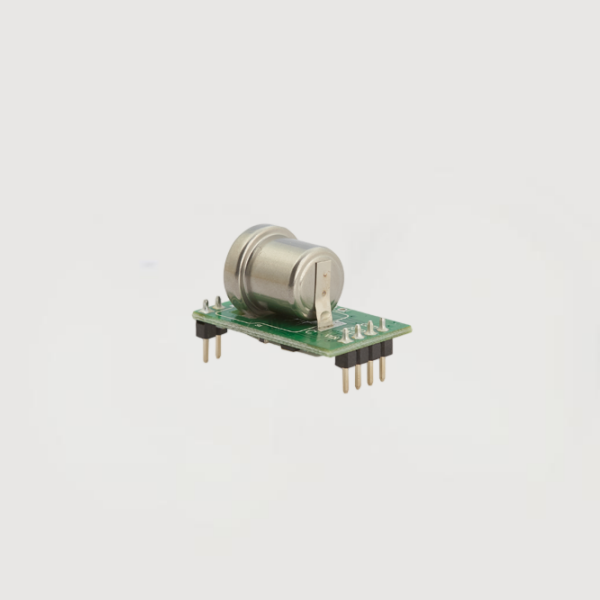

The TX320-E16B electrochemical carbon monoxide module is a versatile, compact module. It utilizes electrochemical principles to detect CO in the air, offering excellent selectivity and stability. The TX320-E16B seamlessly integrates proven electrochemical detection technology with sophisticated circuit design to create a versatile gas module.
Technical specifications
| Model No. | TX320-E16B |
| Detection gas | Carbon Monoxide(CO gas) |
| Interfering gases | Alcohol &etc. |
| Output data | UART output 5V |
| Working voltage | 5V DC |
| Preheating time | 30 seconds |
| Response time | ≤30 seconds |
| Recovery time | ≤30 seconds |
| Detection range | 0～500ppm |
| Solution | 1ppm |
| Working temperature | -10℃~55℃ |
| Working humidity | 15%RH-90%RH(no condensation) |
| Storage temperature | -10℃~55℃ |
| Life span | 2 years(in air) |
Definition of pins
| Pin 1 | PWM output 500ms is one period (20%~80% is corresponding 0~500ppm) |
| Pin 2 | Alarm status: high electrical level output if concentration ≥150ppm) |
| Pin 3 | GND |
| Pin 4 | UART (RXD) |
| Pin 5 | UART (TXD) |
| Pin 6 | VCC |
| NOTE: When the UART serial port is used, the PIN4 RX pin cannot hang in the air | |

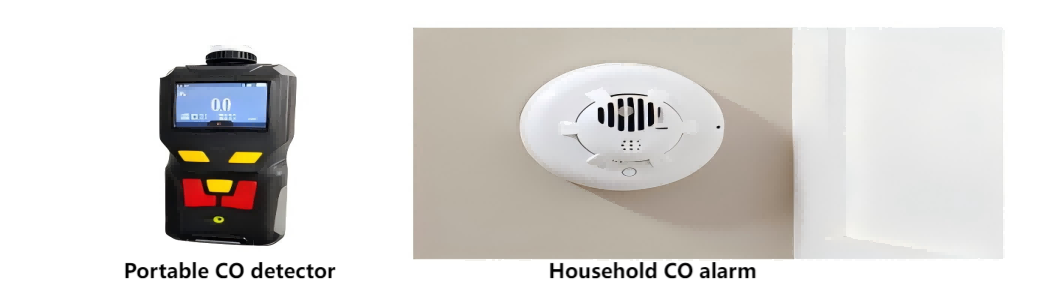

Application
Development of complete household carbon monoxide alarms and household carbon monoxide gas detection.
Production workshop
Certification
TenSensor, China's first listed gas sensor company,Tensensor can provide more than 100 varieties of six series including：
semiconductor gas sensor
electrochemical gas sensor
infrared gas sensor
dust sensor
pyroelectric sensor
thermopile sensor, etc.
which can be used for more than 200 kinds of gas and infrared, dust and other indicators detection, widely used in the field of security for detecting gas leakage, noxious gas leakage, smog and fire, the field of family, office and factory for detecting HCHO, VOC, CO2, PM2.5 and so on.
Moreover, the solutions for security, household electrical appliances, consumer electronics, smart home, instruments and meters are available.
For more information about TX320-E16B module, please contact account manager.
