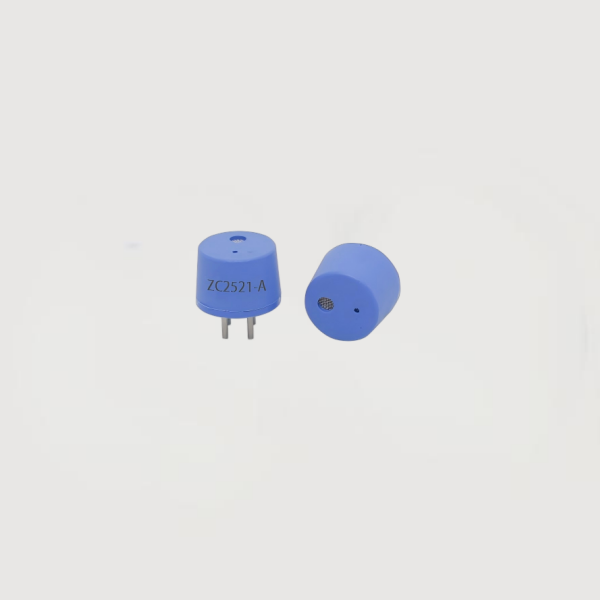

Catalytic Combustion Gas Sensor
Application:
Can be used for leakage alarm or concentration detection of hydrogen, gasoline, alcohol, ketone, benzene and other organic vapors in industrial sitesProduct characteristics:
The bridge output voltage is linearDescription
The ZC2521-A catalytic combustion gas sensor operates based on the principle of catalytic combustion. It consists of a pair of sensing and compensating elements, forming one arm of a bridge circuit. When exposed to combustible gas, the sensing element's resistance increases, causing the bridge's output voltage to change. This voltage change increases in direct proportion to the gas concentration. The compensating element acts as a reference and provides temperature and humidity compensation.
Specifications
| Product Model | ZC2521-A | |
| Product Type | Catalytic combustion gas sensor | |
| Standard Package | Plastic package | |
| Operating Voltage(V) | 2.5±0.1 | |
| Operating Current(mA) | 160±10 | |
| Sensitivity | 20%LEL CH4 | 10～30 mV |
| Linearity | ≤5% | |
| Measurement range(%LEL) | 0～100 | |
| Response time(T90) | ≤10s | |
| Recovery time(T90) | ≤30s | |
| Usage environment | -40～+70℃,Lower than 95%RH | |
| Storage environment | -20～+70℃,Lower than 95%RH | |
