XH-ID-01 Integrated point laser methane probe

Application:

Petroleum, chemical industry, mining
Coal mine safety monitoring
Underground integrated pipeline corridor, gas leakage monitoring, biogas monitoring
Natural gas pipelines, transmission

Product characteristics:

High precision, miniaturization, low power consumption
Long effective absorption path, achieving a long effective absorption path in small optical systems
Powered by wide operating voltage

Product Description


    The integrated point laser methane sensing probe uses Tunable Laser Spectral Absorption (TDLAS) technology to accurately measure the target gas. The sensor probe integrates advanced lasers and detectors to achieve high-precision, high-density, and high-reliability miniaturized integrated package; the sensor probe adopts an open gas exchange method, and at the same time uses unique technology to ensure photoelectric segmentation and ensure the inherent safety of the sensor probe; the sensor probe adopts excellent optical systems and excellent algorithms to achieve high difficulty and accurate measurement, ensuring the advantages of high detection accuracy, fast reaction, and low power consumption of the sensor probe.

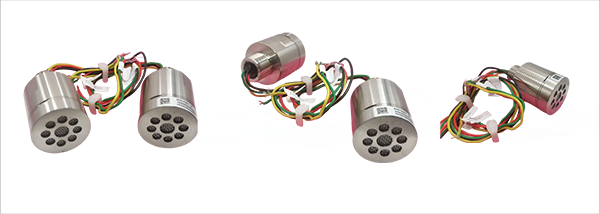

Product images



Technical indicators


Parameter

Mix values

Typical values

Max values

Unit

General parameters

Storage temperature

-40

——

85

Operating temperature

82010521-04

-10

——

50


82010521-05


——




82010521-06

-40

——

70



82010521-07


——



Operating humidity (non-condensing)

——

——

98

%RH

Working pressure

80

——

116

kPa

Detection range

0

——

100

%vol

Basic error

0-1.00%vol

±600ppm

——


(1.00~100)%vol

True value±6%

——

Response time

-

15

-

s


0.01

%vol

Communication interface

TTL

Baud rate

——

9600

——

baud


Stop bit

——

1

——

Bit


Data bit

——

8

——

Bit


Calibration bit

——

——

——

Bit

Electrical properties (room temperature)

Operating voltage

3.3

3.6

50

V

Operating current (average)

——

30

——

mA

Operating current (instantaneous)

——

250

320

mA

Size

Diameter* long

Φ39.3 x 54.3(Not including matching parts)

mm


TenSensor, China's first listed gas sensor company,Tensensor can provide more than 100 varieties of six series

including:

semiconductor gas sensor

electrochemical gas sensor

infrared gas sensor

dust sensor

pyroelectric sensor

thermopile sensor, etc.

which can be used for more than 200 kinds of gas and infrared, dust and other indicators detection, widely used in the field of security for  detecting gas leakage, noxious gas leakage, smog and fire, the field of family, office and factory for detecting HCHO, VOC, CO2, PM2.5 and so on.


Moreover, the solutions for security, household electrical appliances, consumer electronics, smart home, instruments and meters are available.


For more information about XH-ID-01 sensor, please contact  account manager.
