XH-ID-04-01 4-series laser methane sensor probe

Application:

Petroleum, chemical, and mining industries
Natural gas pipelines, transmission stations, and gas filling stations
Coal mine safety monitoring
Other related safety supervision and testing area

Product characteristics:

High precision, miniaturization, and low power consumption
Long effective absorption path, achieving a long effective absorption path in a compact optical system
Wide operating voltage range

Product Description


    The 4-series laser methane sensor probe uses tunable laser absorption spectroscopy (TDLAS) technology to accurately measure target gases. The sensor probe integrates advanced lasers and detectors to achieve high precision, high density, and high reliability in a miniaturized integrated package. The sensor probe utilizes an open gas exchange method. The sensor probe utilizes a superior optical system and advanced algorithms to achieve highly accurate measurements, ensuring the sensor's advantages of high detection accuracy, fast response, and low power consumption.

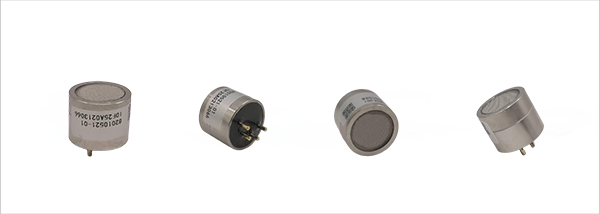

Product images



Technical indicators


Parameter

Mix values

Typical values

Max values

Unit

General parameters

Storage temperature

-40

——

85

Operating temperature

82010521-04

-20

——

60


82010521-05


——




82010521-06

-40

——

70



82010521-07


——



Operating humidity (non-condensing)

——

——

98

%RH

Working pressure

80

——

116

kPa

Detection range

0

——

100

%LEL

Basic error

normal temperature

±3

%LEL


full temperature

±5

%LEL

Detection limit

1000

ppm

Minimum resolution

0.01

%vol

Communication interface

TTL

Baud rate

——

9600

——

baud


Stop bit

——

1

——

Bit


Data bit


8

——

Bit


Parity bit


——

——

Bit


Flow control bit

——

——

——

Bit

Electrical properties (room temperature)

Operating voltage

3.3

3.6

50

V

Operating current (average)

——

——

——

mA

Operating current (instantaneous)

——

250

320

mA

Size

Size

Φ20 x 16 (Length 4.9mm excluding pins)

mm

Filter method

82010521-04

Filter with waterproof breathable membrane

——


82010521-05

Filter

——


82010521-06

Filter with waterproof breathable membrane

——


82010521-07

Filter

——
