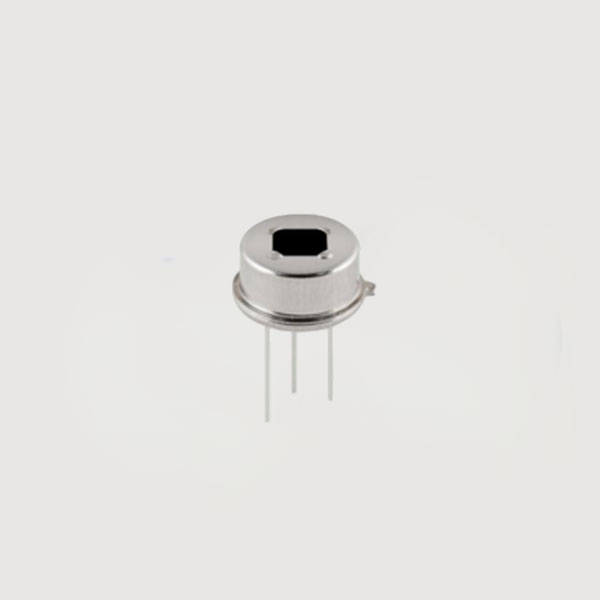

HDA-243A Pyroelectric infrared sensor

Application:

Automatic lighting switches
Smart toys
Intrusion detectors for burglar alarms
Various household appliances

Product characteristics:

The junction field effect tube realizes impedance transformation in the form of source follower
The dual element compensation structure is adopted to effectively resist the interference


1. Description


    HDA-243A pyroelectric infrared sensor uses the characteristics of temperature change to detect infrared radiation, and adopts the method of dual element compensation to suppress the interference caused by temperature change, thus improving the working stability of the sensor.


2. Appearance and dimension



3. Technical specifications


Window size3*4mm

Infrared receiving electrode

2*1mm, 2elements
PackageTO-5
Receiving wavelength5~14μm
Transmittance≥80%
Output signal peak≥3550mV
Sensitivity≥3350V/W
Detection rate1.6 ×108cmHz 1/2/W
Noise peak<65mV
Output balance value<10%
Source voltage0.3~1.2V
Power supplier voltage3~15V

Operating temperature range

 -30~70℃

Storage temperature range

 -40~80℃
Incident angle diagram

equivalent circuit diagram



4.Testing method
