Toxic Gas Sensor
for pharmaceutical ethylene oxide monitoring
Application:
For ETO detection in petroleum, petrochemical, pharmaceutical production and environmental production fields.Product characteristics:
Anti-jammingDescription

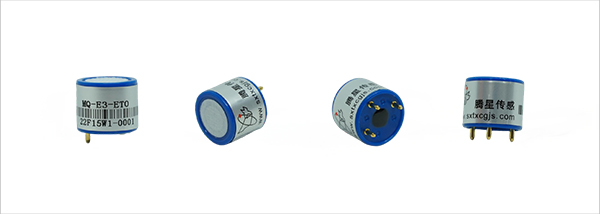

MQ-E3-ETO ethylene oxide sensor is a constant potential electrolytic sensor. Ethylene oxide and oxygen undergo corresponding redox reactions on the working electrode and counter electrode, releasing charges and forming a current. The magnitude of the current is proportional to the concentration of ethylene oxide. The concentration of ethylene oxide can be determined by measuring the magnitude of the current.
Specifications
| Media | ETO |
| Testing range | 0-20ppm (100ppm Max.) |
| Sensitivity | (1.8±0.3)μA/ppm |
| Resolution ratio | 0.1ppm |
| Bias voltage | 300mV |
| Load resistor | 10Ω |
| Repeatability | <2% output value |
| Stability(per month) | <2% |
| Output linearity | linearity |
| Zero drift(-20℃~+40℃) | ≤4ppm |
| Temperature range | -20℃~+50℃ |
| Humidity | 15%-90%RH |
| Response time | <120s |
| Pressure | standard air pressure±10% |
