Toxic Gas Sensor
for industry gas monitoring
Application:
For detecting NO2 in industry or environmental protection fieldProduct characteristics:
Be stableDescription

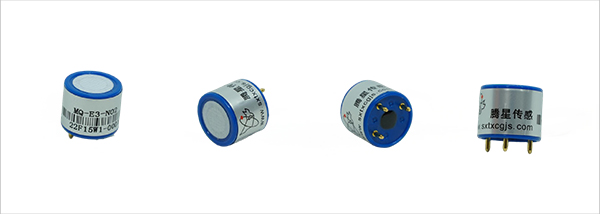

MQ-E3-NO2 is the sensor of fixed potential electrolysis type. By redox reaction, NO2 and O₂release charge and form the current. The value of current is proportional to the concentration of NO2 and follow the Faraday’s Law. By testing the value of current, the concentration of NO2 is known.
Specifications
| project | parameter |
| tracer gas | Nitrogen dioxide (NO2) |
| range | 0~20ppm |
| Maximum measurement limit | 150ppm |
| sensitivity | (0.78±0.42)µA/ppm |
| resolution ratio | 0.1ppm |
| Response time (T90) | ＜25S |
| Load Resistance(recommended) | 10Ω |
| bias voltage | 0mV |
| repetitiveness | <2. Output value |
| Stability (/ month) | ＜2﹪ |
| Output linearity | linear |
| Zero-point drift (-20℃ ~40℃) | 0.2ppm |
| temperature range | -20℃~50℃ |
| Humidity range | 15﹪~90﹪RH |
| pressure limit | Standard atmospheric pressure is ± 10 |
| life length | 2 years (In Air) |
