Toxic Gas Sensor
for industry gas monitoring
Application:
For detecting PH3 in industry, mine or environmental protection fieldProduct characteristics:
Low power consumptionDescription
MQ-E3-PH3 is the sensor of fixed potential electrolysis type. By redox reaction, PH3 and O₂release charge and form the current. The value of current is proportional to the concentration of PH3 and follow the Faraday’s Law. By testing the value of current, the concentration of PH3 is known.
Application
Widely used in industry, mine or environmental protection field for detecting PH3.

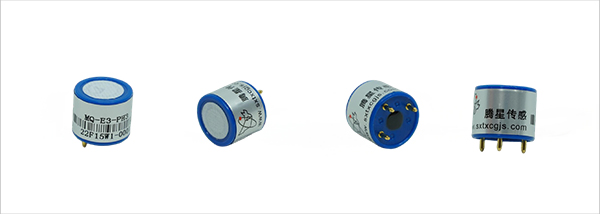

Appearance and dimension
Technical specifications
| Media | PH3 |
| Measuring range | 0-10ppm |
| Max. measuring limit | 20ppm |
| Sensitivity | (1.70±0.30) μA/ppm |
| Resolution ratio | 0.05ppm |
| Response time | ≤30s |
| Bias voltage | 0mV |
| Load resistor(recommended) | 10Ω |
| Repeatability | <2% output value |
| Stability(/Month) | <2% |
| Output linearity | linearity |
| Zero drift | (-20℃~+40℃): 0.7ppm |
| Temperature range | -20℃~+50℃ |
| Humidity | 15%-90%RH |
| Pressure | standard air pressure±10% |
Basic Circuit
Sensor Characterization
TenSensor, China's first listed gas sensor company,Tensensor can provide more than 100 varieties of six series including：
semiconductor gas sensor
electrochemical gas sensor
infrared gas sensor
dust sensor
pyroelectric sensor
thermopile sensor, etc.
which can be used for more than 200 kinds of gas and infrared, dust and other indicators detection, widely used in the field of security for detecting gas leakage, noxious gas leakage, smog and fire, the field of family, office and factory for detecting HCHO, VOC, CO2, PM2.5 and so on.
Moreover, the solutions for security, household electrical appliances, consumer electronics, smart home, instruments and meters are available.
For more information about MQ-E3-PH3 sensor, please contact account manager.
