Toxic Gas Sensor
for hydrogen fluoride gas detection of chemical industry
Application:
Extensive suitable for industrial and environmental protection field of hydrogen fluoride detection.Technical specificationProduct characteristics:
Low power consumptionDescription
The MQ-E4-HF hydrogen fluoride sensor is a fixed potential electrolytic sensor, Hydrogen fluoride gas releases a series of REDOX reactions inside the sensor The discharge charge forms a current, the magnitude of which is proportional to the hydrogen fluoride concentration Following Faraday's Law, fluorination is determined by measuring the size of the electric current Hydrogen concentration.
Application
Widely used in industry or environmental protection field for detecting HF.

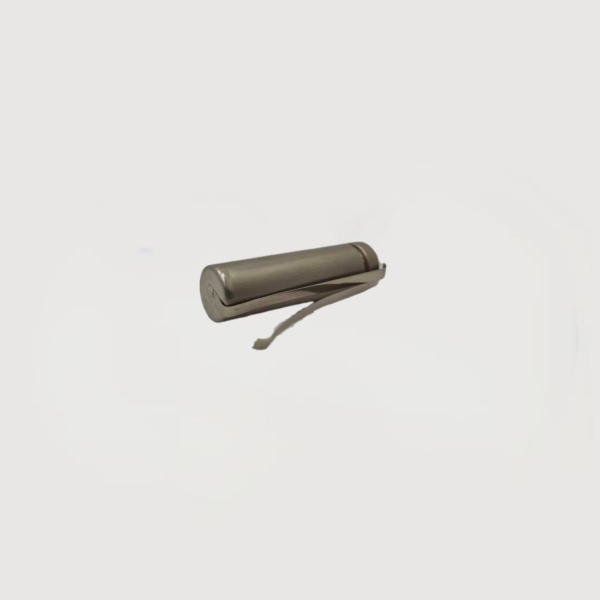

Appearance and dimension
Technical specification
| project | parameter |
| tracer gas | hydrogen fluoride (HF) |
| range | 0~10ppm |
| Maximum measurement limit | 100ppm |
| sensitivity | (0.40±0.15) µA/ppm |
| resolution ratio | 0.1ppm |
| Response time (T90) | ≤90S |
| Load Resistance(recommended) | 0mV |
| bias voltage | 10 Ω |
| repetitiveness | ＜2﹪ |
| Stability (/ month) | ＜2﹪ |
| Output linearity | linear |
| Zero-point drift (-20℃ ~40℃) | ≤0.2ppm |
| temperature range | -20℃~50℃ |
| Humidity range | 15﹪~90﹪RH |
| pressure limit | Standard atmospheric pressure is ± 10 |
| life length | 2 years |
Basic circuit
TenSensor, China's first listed gas sensor company,Tensensor can provide more than 100 varieties of six series including：
semiconductor gas sensor
electrochemical gas sensor
infrared gas sensor
dust sensor
pyroelectric sensor
thermopile sensor, etc.
which can be used for more than 200 kinds of gas and infrared, dust and other indicators detection, widely used in the field of security for detecting gas leakage, noxious gas leakage, smog and fire, the field of family, office and factory for detecting HCHO, VOC, CO2, PM2.5 and so on.
Moreover, the solutions for security, household electrical appliances, consumer electronics, smart home, instruments and meters are available.
For more information about MQ-E4-HF sensor, please contact account manager.
